Zigbee 3.0 infrared presence detector HS1MIS

Zigbee 3.0 infrared motion detector HS1MIS

product description

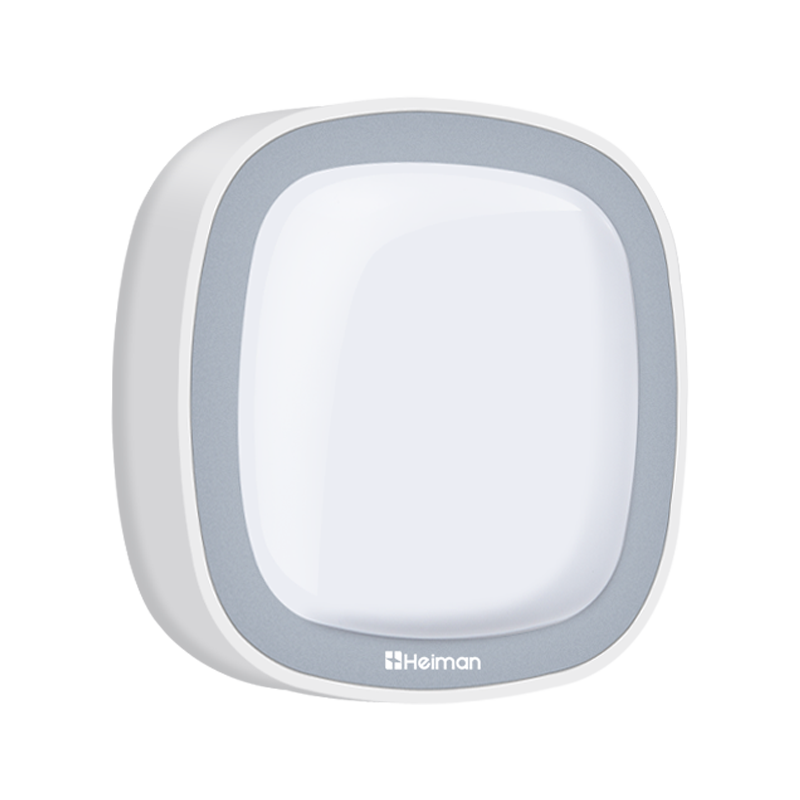

The Zigbee 3.0 infrared motion detector HS1MIS is a reliable sensor for motion detection and brightness measurement. It is suitable for integration into Zigbee-based smart home systems and supports a wide range of applications, such as lighting control or room monitoring.

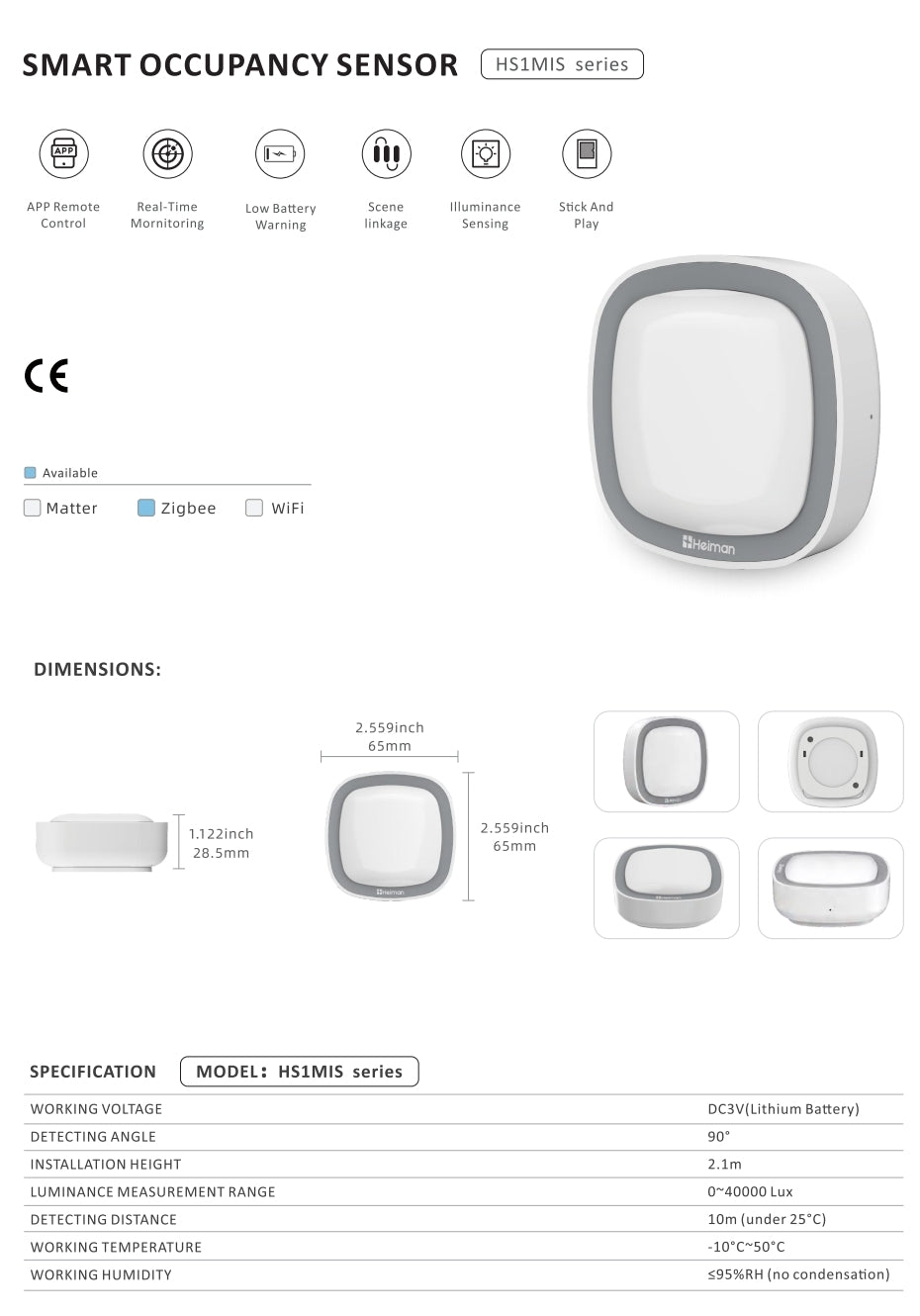

Technical specifications:

• Operating voltage: DC 3V (1x CR123A battery)
• Power consumption in standby: ≤ 15µA
• Alarm current: ≤ 30mA
• detection angle: 90°
• Detection range: 8–10m
• Installation height: 2.1m
• Brightness measuring range: 0–40,000 lux
• Operating temperature: -10°C to +50°C
• Humidity: up to 95% RH
• Wireless standard: Zigbee HA 3.0
• Range of the radio connection: up to 50m in open terrain
• Anti-RF interference immunity: 80MHz – 1000Hz, 10V/m
• Dimensions: 65 x 65 x 28 mm

Features:

• Motion detection: The sensor detects movements within a 90° angle and a range of up to 10 meters with a recommended installation height of 2.1 meters.
• Brightness sensor: The integrated brightness sensor measures light values ​​between 0 and 40,000 lux, which enables automatic light control.
• Battery operation: The sensor is powered by a CR123A battery and is characterized by low energy consumption (up to 2 years of operation).
• Zigbee compatibility: The connection is made via Zigbee HA 3.0, which allows the sensor to be integrated into existing Zigbee networks.

Areas of application:

• Automatic light control based on movement and ambient brightness
• Security applications such as room monitoring or alarm systems

The HS1MIS is suitable for indoor use thanks to its compact design and reliable detection performance.
