Sonoff SwitchMan M5-3C-86W Matter Wall Switch - 3 Gang

Name: Sonoff SwitchMan M5-3C-86W Matter Wall Switch - 3 Gang
Brand: SONOFF
SKU: SD-SO-M5-3C-86W
Price: 21.70 EUR
Availability: InStock

21,70 €

Sale Sold out

Taxes included. Shipping calculated at checkout.

auf Lager: 26

Works with: Wi-Fi and Matter

Sonoff M5-3C-86W Matter Wall Switch

The Sonoff M5-3C-86W is an elegant 3-gang wall switch (86 × 86 mm) with Matter over Wi-Fi for reliable, local control of your lighting. It can be integrated directly into Home Assistant (Matter controller) and is also compatible with Apple Home, Amazon Alexa, and Google Home. The high-quality front panel with a subtle LED indicator and clear button mechanics provides a modern user experience.

Matter & Wi-Fi (2.4 GHz): local control, secure integration into popular smart home apps
3 Gang (2A/gang): ideal for lighting circuits and loads up to approx. 1,320 W (1–440 W per gang)
Neutral wire required: stable power supply, reliable switching
Scenes & Automations: schedules, timers, group control
LED status indicator: subtle orientation, adjustable depending on firmware/model
eWeLink-Remote support: optional with R5/S-MATE for additional control points

Fast setup
In just a few steps via Matter commissioning.

Local automation
No cloud required thanks to Matter over Wi-Fi.

Clean finish

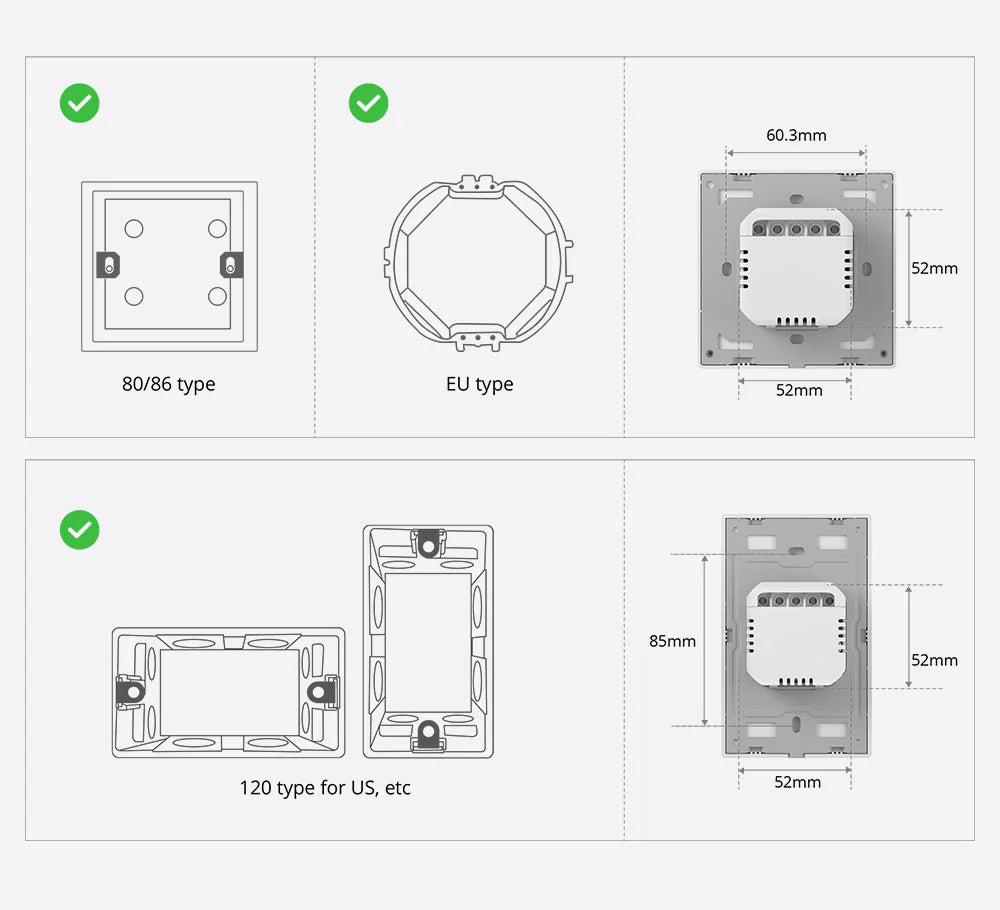

86 mm form factor for EU flush-mounted boxes.

Compatible with Home Assistant
Control directly via the HA dashboard.

Compatibility & Integration

The switch is Matter-enabled and works with Home Assistant, Apple Home, Alexa, and Google Home. Via Home Assistant, it can also be used with devices of other technologies in shared automations (e.g., lamps, sensors, or actuators of other wireless standards).

Technical Specifications

Model	M5-3C-86W (3-gang, white)
Mains voltage	100–240 V AC, 50/60 Hz
Max. current / load	6 A (≈ 1,320 W at 220 V; 1–440 W/gang)
Wireless	Wi-Fi 2.4 GHz, Matter over Wi-Fi
Connections	L-In, L-Out, N (neutral wire required)
Form factor	86 × 86 mm, flush-mounted (EU)
Operating temperature	-10 °C to +40 °C
App/Platforms	Home Assistant (Matter), Apple Home, Alexa, Google Home
Scenes/Timer	Schedules, countdown, automations
LED indicator	Status LED (brightness/status adjustable via firmware)
Safety	CE compliant; indoor use

Included in delivery

Sonoff M5-3C-86W wall switch
Mounting material
Quick start guide

Installation notes

Before starting work, switch off the power circuit at all poles and secure against being switched back on.
Neutral wire required; suitable for dry indoor rooms.
Installation by a qualified electrician is recommended.

FAQ

Does the switch work without internet?
Yes. Through Matter, local switching operations are possible within the home network.

Is Home Assistant compatible?
Yes. The switch can be integrated directly via the Home Assistant Matter controller and automated together with devices of other technologies.

Does the switch support dimming?
The M5-3C-86W is an on/off switch. For dimming, a suitable dimmer actuator is required.

Do I need a neutral wire?
Yes, operation requires a neutral wire.
