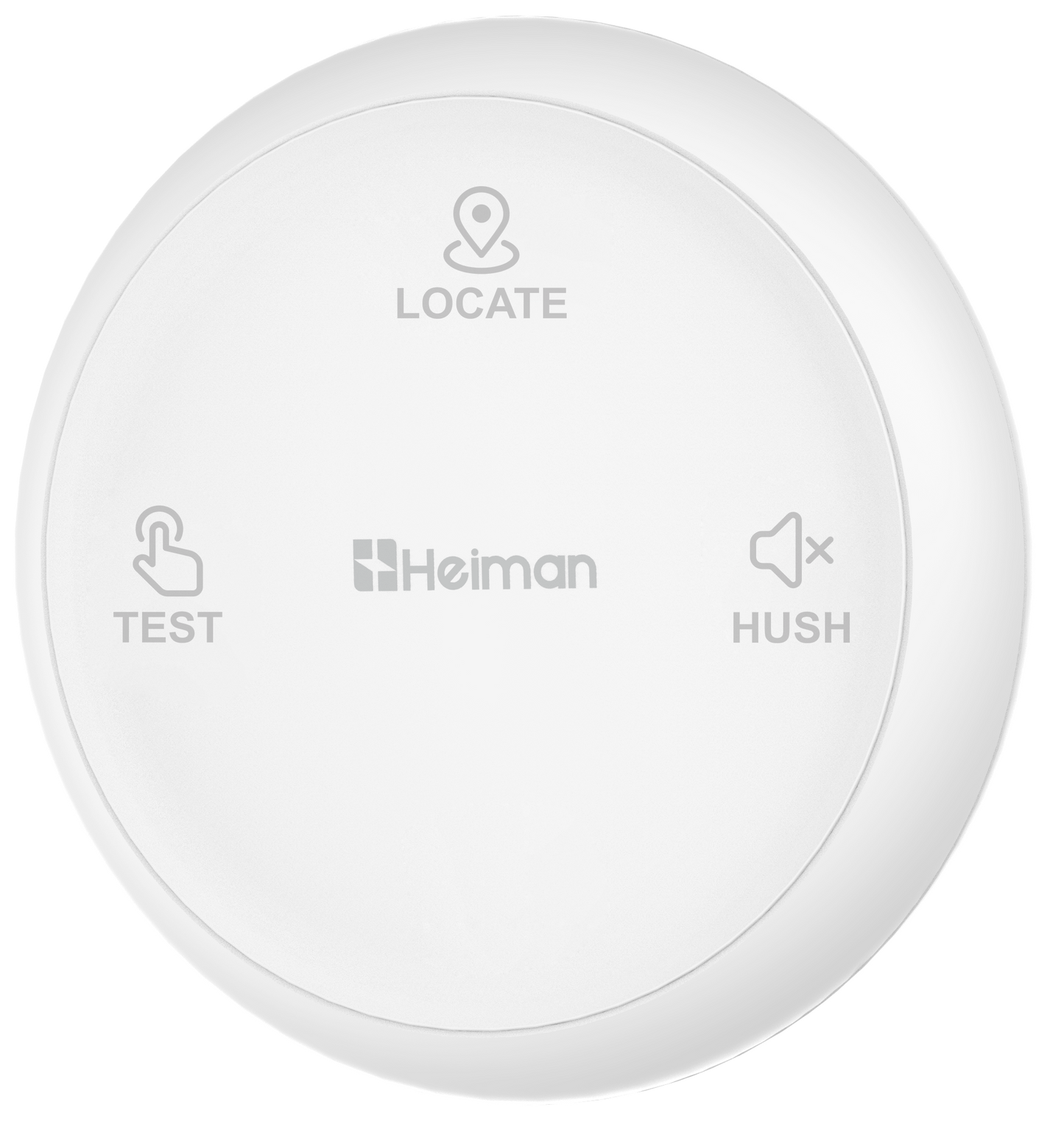

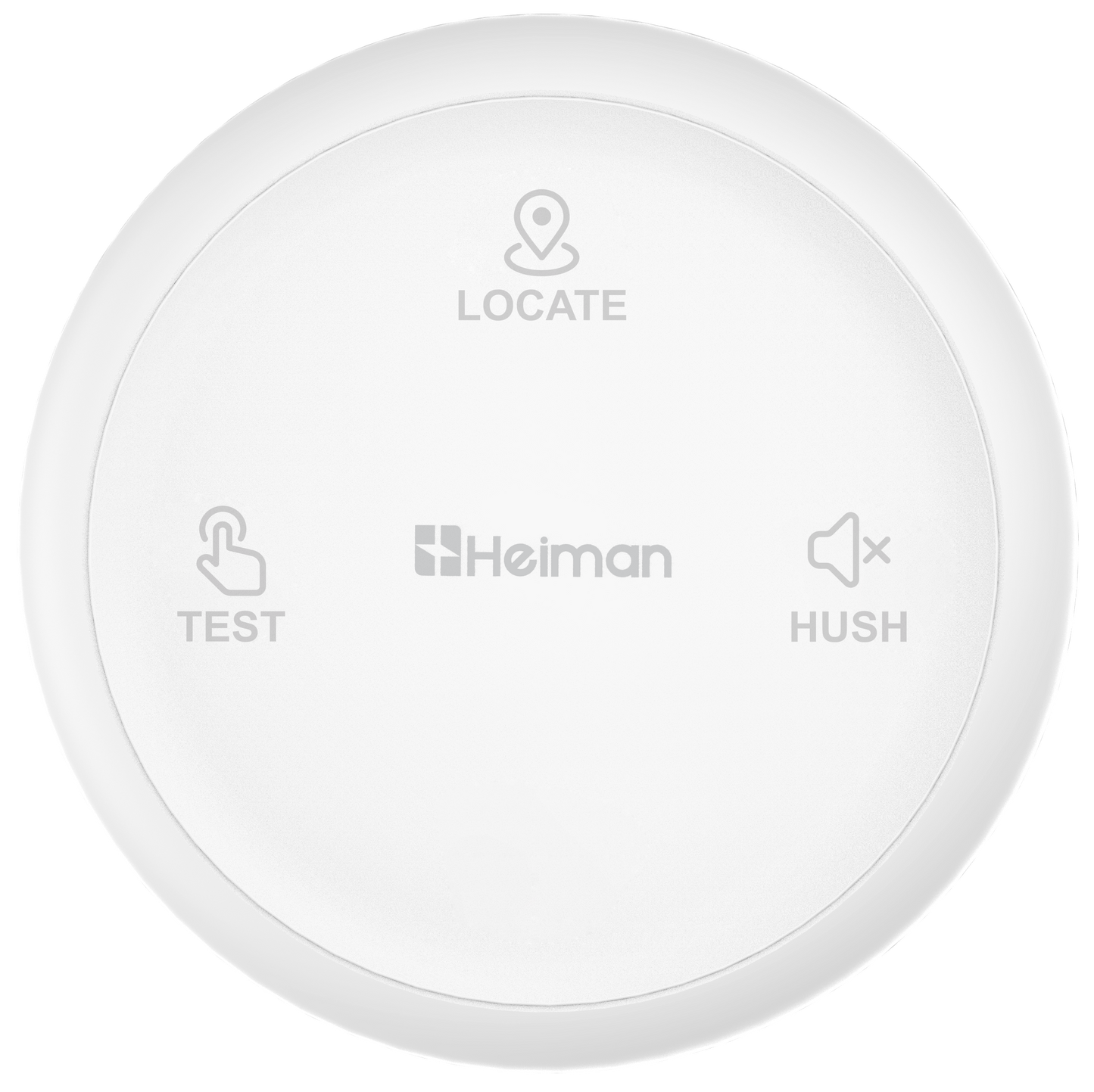

Heiman HM2RC Remote Control - Central Control for Wirelessly Networked Detectors

The Heiman HM2RC is a compact radio remote control for convenient operation of networked smoke, CO, or heat detectors in the 868 MHz system. It allows central testing, localization, or silencing of up to 40 connected devices – without a ladder or access to the ceiling.

With just one push of a button, all devices in the network can be checked for functionality. In case of an alarm, the "Locate" function helps to identify the triggering detector. Acoustic signals can be selectively deactivated via the "Hush" button, e.g., in case of false alarms.

Typical applications
– Control of wirelessly networked Heiman detectors (868 MHz)
– Convenient operation without a ladder or app
– Ideal for households with children, seniors, or hard-to-reach installation locations

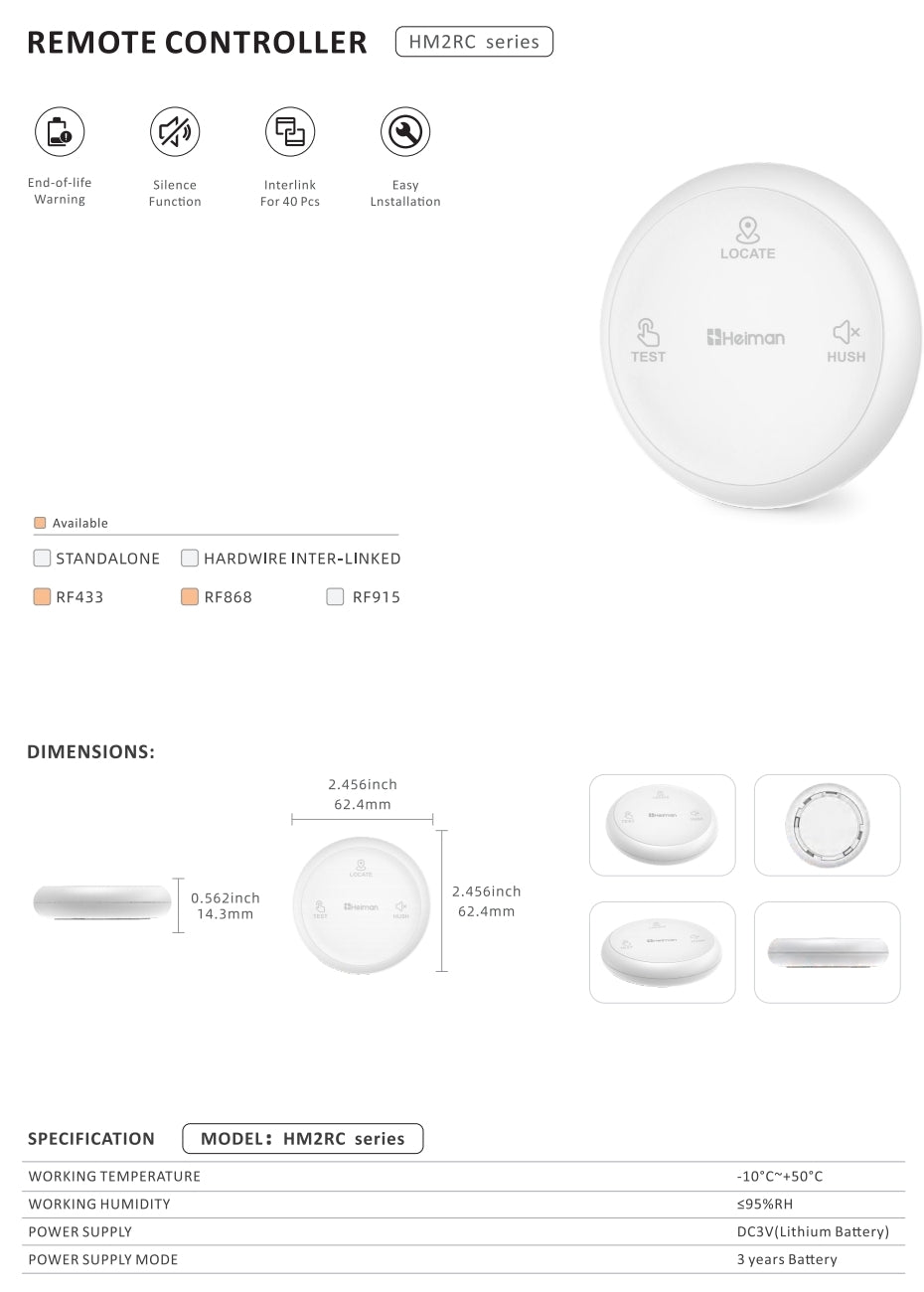

Technical data
– Model: HM2RC
– Power supply: DC 3 V (1 × CR2450 coin cell)
– Battery life: approx. 3 years
– Radio range: max. 50 m
– Number of controllable devices: up to 40 networked detectors
– Current consumption (standby/operation): ≤5 µA / ≤30 mA
– Operating temperature: -10 °C to +50 °C
– Humidity: ≤95 % RH (non-condensing)
– Dimensions: Ø 62.5 mm × H 13.9 mm
– Mounting: Wall bracket or table placement

Special features
– Test function for simultaneous functional testing of all networked devices
– Locate function for quick identification of the triggering detector
– Hush function to silence all devices in case of false alarms
– Low energy consumption
– Flat, modern design – also ideal for older users
